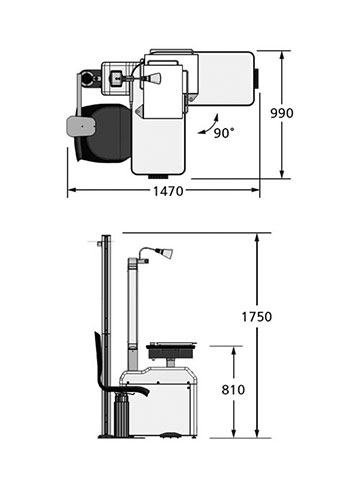

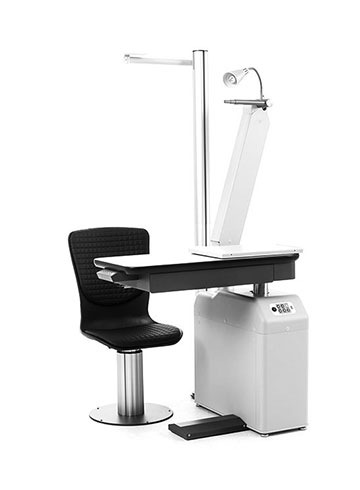

Compact Size for 1 Instrument Feature - Compact Size for 1 Instrument (Auto-Keratomter) table with Auto Phoropter Arm -1-Instruments Refraction Unit & Chair - It is a compact product that enables effective ophthalmologic examination in a narrow space. - Left Handed & Right Handed are both available - Applicable Chairs RC-100 RC-400 Specification (mm) Unit External Dimension 900(W)*1370(D)*1750(H) Table Size 900*420 Table Height 780 Rated Voltage AC110 or 230V / 50 or 60Hz Power Consumption 200VA Table Rotation Angle 90° Drawer Size 546(W)*350(D)*55(H) Allowable Loading Weight of Swing Table 20kg Product Weight 77kg Chair External Dimension 460(W)*490(D)*870(H) Seat Height Min.420 ~ Max.670 Up/Down Stroke & Speed 250mm, 15mm/sec Allowable Loading Weight of Chair 150kg Product Weight 18kg Total Product Weight (Unit + Chair) 95kg - Left Handed & Right Handed are both available. The Table Rotates 90 Degrees It is easy to access the test subject by attaching a table with a rotating structure. Ref/Keratometer Table Especially designed to improve user's convenience of maximizing the space utilization Enables users to block the interference of Ref/Keratometer with phoropter in small space by simply turning aside this table equipped with Ref/Keratometer. Control Panel & USB Port There is Control Panel with easy operation and USB Port which can be charged with smart phone or Tablet PC for management checking data. Table Switch Able to control functions of unit chair as central control system. LED Lamp & Hanger Select short distance LED lamp and it make minimizing power consumption and secure semi-permanent durability. It looks clean because there is the cover which can arrange phoropter's power cables and other lines. Rotation of Phoropter Arm The auto arm function makes the Phoropter test easier. Built-In Drawer This unit has a drawer under the table to keep operating appliances in. This saves you the space and time. Multiple-Choice Design You may choose it both left wheel type and right wheel type depends on characteristics of Doctor's office. Two-way side drawer You can choose the direction of the drawer depending on your treatment environment.
